FFCC-A1

The FFCC-A1 Series Connection Cabinets offer quick connection to a mobile generator (inlet) or load bank (outlet). They can be penetrated from the back or top to allow for facility wiring. These units are equipped with colour coded camlock receptacles allowing easy connection. Assemblies are available wit up to 1200A mains and are certified to cULus standards.

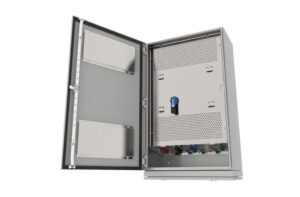

FFCC-A2

The FFCC-A2 Series Connection Cabinets offer quick connection to a mobile generator (inlet) or load bank (outlet). They can be penetrated from the back or top to allow for facility wiring. These units are equipped with a manual transfer switch enabling switching to a mobile generator or load bank. Units can also be specified with a rotary disconnect. Units come complete with colour coded camlock receptacles allowing for easy connect ionAssemblies are available with up to 1200A mains and are certified to cULus standards.

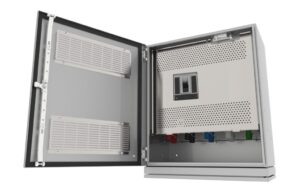

FFCC-A3

The FFCC-A3 Series Connection Cabinets offer quick connection to a mobile generator (inlet) or load bank (outlet). They can be penetrated from the back or top to allow for facility wiring. These units come equipped with a molded case circuit breaker or switch, depending on if over-current protection is needed or not. Units are used for enabling switching to a mobile generator or load bank. Units come complete with colour coded camlock receptacles allowing for easy connect ionAssemblies are available with up to 1200A mains and are certified to cULus standards.

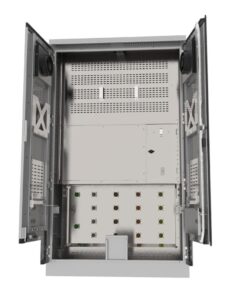

FFCC-P1

The FFCC-P1 Series Connection Cabinets offer quick connection to a mobile generator (inlet) or load bank (outlet). They can be penetrated from the top, bottom or sides to allow for facility wiring. These units are equipped with colour coded camlock receptacles allowing for easy connection. Assemblies are available with up to 4000A mains and are certified to cULus standards .

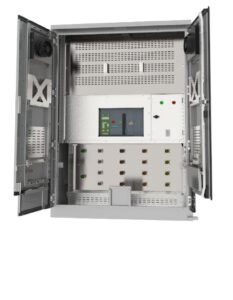

FFCC-P2

The FFCC-P2 Series Connection Cabinets offer quick connection to a mobile generator (inlet) or load bank (outlet). They can be penetrated from the top, bottom or sides to allow for facility wiring. These units are equipped with colour coded camlock receptacles allowing for easy connection and also a molded case breaker or switchAssemblies are available with up to 4000A mains and are certified to cULus standards.

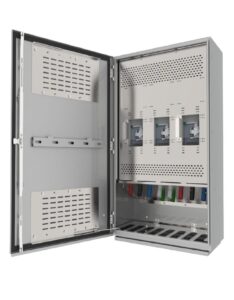

FFCC-S1

The FFCC-S1 Series 3-Way Manual Transfer Switch Connection Cabinet allows for maximum redundancy when considering load bank testing and portable generationThis unit allows for isolated load bank testing which gives the facility the ability to have a portable generator tied in at the same timeThese units are equipped with colour coded camlock receptacles allowing for quick and easy load bank or portable generator connection. Assemblies are available with up to 1200A mains, certified to cULus standards and NEC 700.3F compliant.

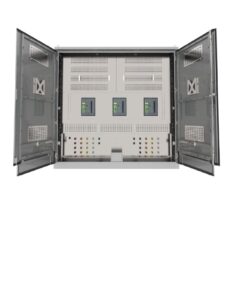

FFCC-S2

The FFCC-S2 Series 3-Way Manual Transfer Switch Connection Cabinet allows for maximum redundancy when considering load bank testing and portable generation. This unit allows for isolated load bank testing which gives the facility the ability to have a portable generator tied in at the same time. These units are equipped with colour coded camlock receptacles allowing for quick and easy load bank or portable generator connection. Assemblies are available with up to 4000A mains, certified to cULus standards and NEC 700.3F compliant.

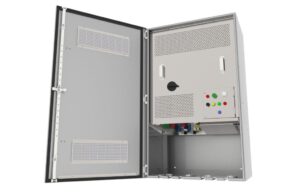

FFIS-C3

The FFIS-C3 Series Connection Cabinets offer a 3-way solution for both a Back Up Generator connection (inlet) and Load Bank (outlet) testing to be done simultaneously. They can be penetrated from the back or top to allow for facility wiring. These units come equipped with a shunt trip circuit breaker or switch, depending on if automatic shunt trip (based on generator run command) is needed or not. Units are used for enabling switching to a permanent generator, mobile generator, utility, and/or load bank. Units come complete with colour coded camlock receptacles allowing for easy connect ionAssemblies are available with up to 1200A mains and are certified to cULus standards.

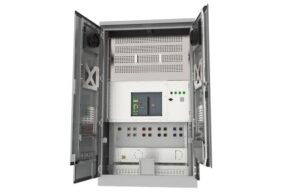

FFIS-P2

The FFIS-P2 Series Connection Cabinets offer a 3-way solution for both a Back Up Generator connection (inlet) and Load Bank (outlet) testing to be done simultaneously. They can be penetrated from the back or top to allow for facility wiring. These units come equipped with a shunt trip circuit breaker or switch, depending on if automatic shunt trip (based on generator run command) is needed or not. Units are used for enabling switching to a permanent generator, mobile generator, utility, and/or load bank. Units come complete with colour coded camlock receptacles allowing for easy connect ionAssemblies are available with up to 4000A mains and are certified to cULus standards.
